Git Collaboration Activity

Credit: This activity was designed by Semmy Purewall

This activity is designed to be completed entirely in class. The goals with this activity are as follows:

Practice with merge conflicts
Practicing with various merging/rebasing strategies
More practice with basic git & CLI stuff

Setup

For this activity, you’ll work with (at least) one other person. To bootstrap, you’ll both create a new git repository called merge-activity.

On the command line (Windows users use WSL, create a new directory at the root of your csci338 folder:

$ mkdir merge-activity

Navigate into the directory (cd merge-activity)
Initialize a new git repository (git init)
Create a README.md file with a header
State your README.md file using git add .
Commit it (git commit -m "Added README.md")

Next add a my_code.py file. It should look like this.

def say_hello() -> None:
    print("hello world!");


if __name__ == "__main__":
    say_hello();

Commit it.

Now create a github repository for this and push it. Let’s keep it a private repository for now.

After a successful push, add your collaborator to the repository. Next, change directory back into your csci338 directory and clone your partner’s repository, but let’s change the name when cloning (so as to not create a conflict with your merge-activity repository) like this:

$ # make sure you're in your csci338 directory
$ git clone git@github.com:<owner-username>/merge-activity.git <your-username>-merge-activity

For instance, if Sarah was cloning Walter’s repository, she would type:

$ git clone git@github.com:walter/merge-activity.git walter-merge-activity

Sarah’s repository: merge-activity
Walter’s repository: walter-merge-activity

Now you should have two versions of the respository: yours (merge-activity) and your partners (<owner-username>-merge-activity). List the contents of your csci338 directory to confirm that this is the case.

Creating a Conflict

Pick one of the two github repositories to use for this section. We’ll refer to the repository owner as “owner” and the other person as the “collaborator” from here on out.

We’re going to work on two features in parallel now. The owner will work on Feature A and the collaborator will work on Feature B. The owner of the repo will change directories to their home directory and then go into merge-activity activity directory like this:

$ cd merge-activity

The collaborator will go into their clone of the owner’s repo on their computer.

$ cd <username>-merge-activity

These two repositories should have the same remote urls.

Question: Which Git subcommand can you use to confirm that? Go ahead and confirm it.

Answer: git remote show origin

Complete the next two sections in parallel.

Feature A

This feature will be implemented on the main branch.

The owner of the repository should complete Feature A. Instead of always printing “hello world”, let’s make your function print out “hello <name>” where “<name>” is specified as a parameter to the function. In other words, when called like this:

say_hello("Walter")

It will print out:

hello Walter!

Once this is tested and working commit it locally, then push your main branch to the remote repository on GitHub.

Feature B

The collaborator will complete this feature on a branch. First, create and check out a branch.

$ git checkout -b feature-b

Now implement feature-b. Allow an argument to specify the number of times the message should be repeated. So if it’s called like this:

say_hello(3)

It will print out:

hello world!
hello world!
hello world!

Once you’re happy with your change, commit it locally, but do not push anything yet.

Merging

Once you’re both finished with the sections above, you’ll work together on this section on the collaborator’s computer.

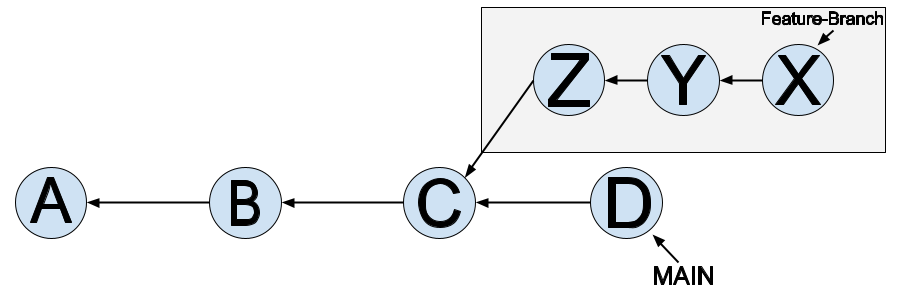

At this point, we are in the situation where you are in a feature branch, but main is ahead.

Check the state of your git repository and make sure you’re on the feature-b branch. Let’s checkout main on your laptop and then pull your partner’s changes down from GitHub.

$ git checkout main

Confirm you’re on the main branch now.

$ git pull origin main

Now take a look at the history and make sure you see the commit that implements feature A. Let’s check out feature-b.

$ git checkout feature-b

Let’s take a look at the history again. Do you see the commit with feature A? Probably not, but you can see it by doing this:

$ git log --all

And if you want a visual representation, add the --graph option. Where is HEAD? Where is feature-b?

$ git log --all --graph

Let’s merge the branches! First, check out main again. Take a look at the history (with all commits and the graph option enabled). Where is HEAD?

Now let’s use the merge subcommand to merge the branches. Make sure you’re on main and then run:

$ git merge feature-b

This attempts to merge the feature-b branch into the main branch. It should look something like this:

<<<<<<< HEAD
[Feature A Code]
=======
[Feature B Code]
>>>>>>> feature-b

Note that [Feature A Code] will be replaced with the actual code associated with Feature A. The top part represents the state of the code at your HEAD (in this case, HEAD is an alias for main).

Before going further, take a look at the state of your repository. Note that git gives you helpful instructions on how to proceed – you can either fix the conflicts and then run git commit -m "some message" which will create your merge commit, or you can abort the process altogether.

Your job is now to reconcile these conflicts, and remove the merge conflict separators. Do that now. At the end of your reconciliation, both features should work as expected. You can test them by running it with Python.

Once that’s done, let’s take a look at the state of the repo again. Git should tell you that you’re good to go!

$ git status

Let’s take a look at the log with the --graph option. You should see your merge commit with two parent pointers.

Commit and Push the changes to the main branch on Github, and take a look at all the commits.

Rebasing

Let’s reverse roles now so that the owner becomes the collaborator and vice-versa. Change directories into the other repository that was created and clone at the beginning, and reimplement Feature A and Feature B. Like before:

The owner will be working on the main branch and the collaborator will be working on a branch called feature-b.

Once again, you’ll collaborate on the collaborator’s computer (but the other person should be the collaborator now). We’ll do a rebase and fast-forward this time, instead of a merge. Start by examining the history as described above. Take a note of the commit hash of feature-b. After a successful rebase, that should change (since we’re creating a new commit).

Next, we’ll rebase main on the feature-b branch, then fast-forward merge feature-b back into main. So check out the feature-b branch. And then, after confirming you’re in the right place, the collaborator should do the rebase.

$ git rebase main

Git will try to “replay” the new commit in main on top but it will hit the same conflict we saw in the merge case. Read the message Git outputs.

Now take a look at the code. You’ll see it looks something like this.

<<<<<<< HEAD
[Feature A Code]
=======
[Feature B Code]
>>>>>>> 1a0ffaa (Add feature b)

In this case HEAD is main again, since we checked it out to replay the commits on top. Check the status of the repository, and read all the hints Git is giving you. Fix the conflicts as you did this time.

Once you’re done, check the status again and read the message.

Question: What should you do now? Go ahead and do it.

Answer: git rebase --continue

Once that’s done, you’ve successfully rebase main onto feature-b. Check the history and note that the commit hash associated with feature-b has changed as we expected!

We’re not finished yet, because we wanted to get feature-b into main. Now that main is no longer ahead, we can do a fast-forward merge into main. To complete this, check out the main branch and do a merge.

$ git checkout main
$ git merge feature-b

Read the output. Now take a look at the history with the --graph option. How is the history different from the merge above? Do you see a merge commit?

Push the changes to Github and take a look at the commits.

Now you’ve successfully fixed some merge conflicts, merged, and rebased. Do you have any opinions on which is better? Talk with your partner about your newly found strong opinions.
